Silvertone 8002 Ch= 132.42600 Order=57D 8002
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230932
-
- Brand: Silvertone

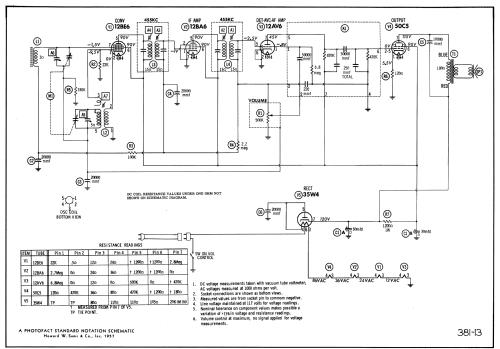

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC 25 to 60 cycles, 105 to 120 Volts or DC, 105 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 8002 Ch= 132.42600 Order=57D 8002 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 10.75 x 5.125 inch / 254 x 273 x 130 mm
- Notes
-
The Sears Silvertone 8002 is an AC operated 5 tube BC band receiver. BC band tuning range is 535 - 1620kHz. Cabinet color is brown.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 8002 Brown 8003 Ivory See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 13.95 $
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Ser 381, Folder 13 Dated 12-57)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1008. Spring/Summer 1958, page 853.)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
