Silvertone 8004 Ch= 132.818-1

Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 946916) Radio Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 1320951) Radio
Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 1322747) Radio Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 1432453) Radio
Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 1432454) Radio Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 1432455) Radio
Use red slider bar for more.
Silvertone 8004 Ch= 132.818-1; Sears, Roebuck & Co. (ID = 946916) Radio
Sears, Roebuck & Co.: Silvertone 8004 Ch= 132.818-1 [Radio] ID = 946916 475x355
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 8004 Ch= 132.818-1, Sears, Roebuck & Co.; Chicago (IL):
ebay #220743207918

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1948–1950 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Silvertone 8004 Ch= 132.818-1 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 162 x 135 x 105 mm / 6.4 x 5.3 x 4.1 inch
Notes

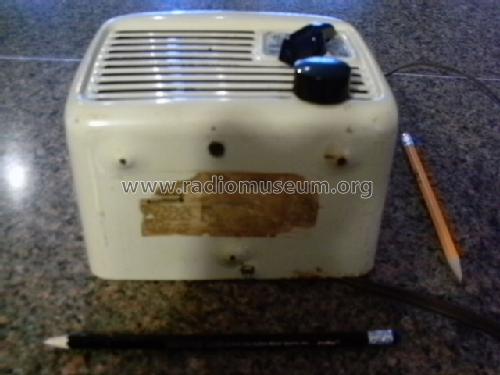

Ivory-color finish, gold color trim. See also Silvertone model 8003.

Price in first year of sale 11.95 $
Source of data Machine Age to Jet Age III
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (#198, Spring & Summer 1949, page 627. #199, Fall & Winter 1949/50, page 769.)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
