Silvertone 8006 Ch= 132.42700 Order=57D 8006 Ivory
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- 1958/1958 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- Brand: Silvertone

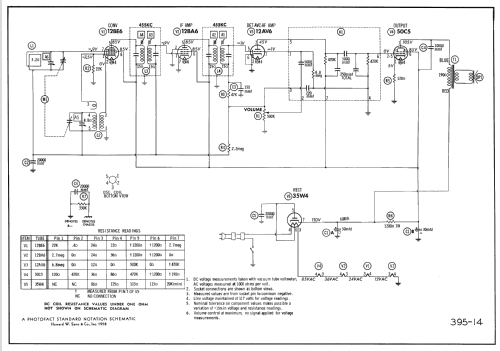

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 8006 Ch= 132.42700 Order=57D 8006 [Ivory] - Sears, Roebuck & Co.; Chicago
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 6.5 x 6 inch / 330 x 165 x 152 mm
Silvertone model 8006 is an AC-DC operated AM receiver with clock (alarm).
Silvertone 8005, Brown.
Silvertone 8006, Ivory.
Silvertone 8007, Green .
- Price in first year of sale
- 20.95 $
- Literature/Schematics (1)

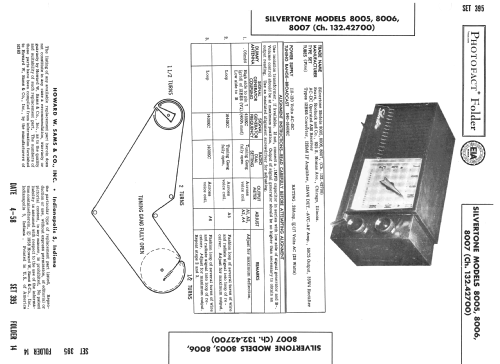

- Photofact Folder, Howard W. SAMS (Set 395 Folder 14 dated 4-58)
- Literature/Schematics (3)

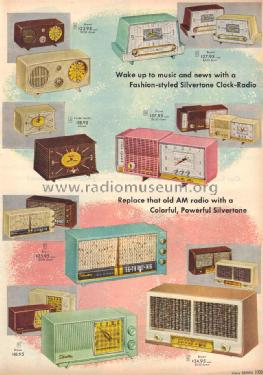

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1958, page 853.)
- Literature/Schematics (4)

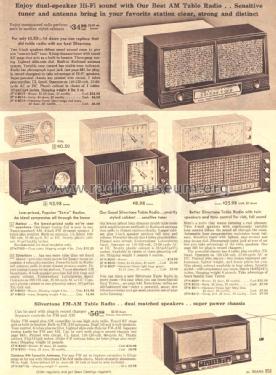

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1008 & page 1009.)
- Model page created by Franz Scharner. See "Data change" for further contributors.
