Silvertone 8109 Ch= 101.851-1
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 131495
-
- Brand: Silvertone
SAMS Photofact Folder 4912-10

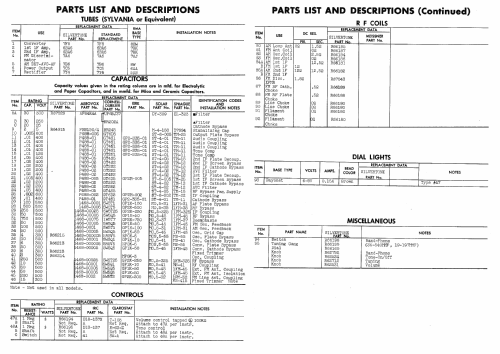

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8109 Ch= 101.851-1 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Silvertone model 8109 from Sears, Roebuck & Co. builds according to Photoshop (Date 6-49, 4912-10, set 64, folder 10) with its technical data the following family: 8107A, 8108 and 8108A with chassis 101.851 and 8109 with chassis 101.851-1. They all are AC operated combination phono-radios with AM-FM receiver and loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-49, 4912-10, set 64, folder 10)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
