Silvertone 9002 Ch= 132.44300 Order=57Y 9002
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 151084
-
- Brand: Silvertone

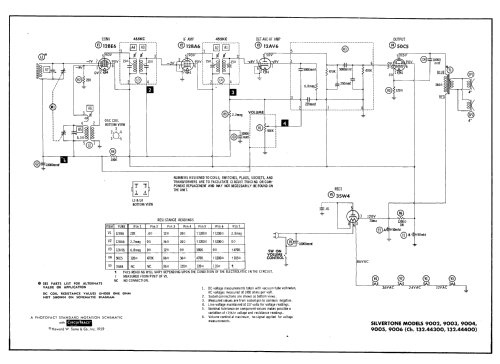

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 9002 Ch= 132.44300 Order=57Y 9002 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 5.5 x 4.5 inch / 305 x 140 x 114 mm
- Notes
-
The Sears Silvertone 9002 is an AC/DC operated 5 Tube AM Receiver. AM band tuning range is 520 to 1690kHz. Cabinet color is Brown.
The following models use the same schematic and chassis:
Model Cabinet Color 9002 Brown 9003 Ivory See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 13.85 $
- Literature/Schematics (1)

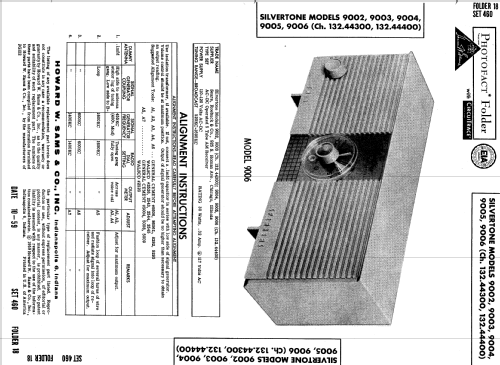

- Photofact Folder, Howard W. SAMS (Date 10-59, Set 460, Folder 18)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 273.)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 876.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
