• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151636

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N212 2N94 2N94 2N35 2N321 2N321

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 9016 Ch= 132.45700 Order=57Y 9016 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 6.5 x 4.25 inch / 356 x 165 x 108 mm

• Notes

• The Sears Silvertone 9016 is a battery operated 6 transistor AM Receiver. The AM band tuning range is 535 to 1630kHz. Uses Qty(6) 1.5V "D" size batteries.  Has Qty(2) PM 4" speakers. Also has tone control, a built-in rod antenna and push-pull output stage.  Cabinet color is Harmony House Ming Blue with gold and silver colored trim.

  The following models use the same schematic and chassis:

  Model	Cabinet Color
  9014	Brown
  9015	Ivory
  9016	Harmony House Ming Blue

  See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).

• Price in first year of sale
• 48.95 $

• Literature/Schematics (1)

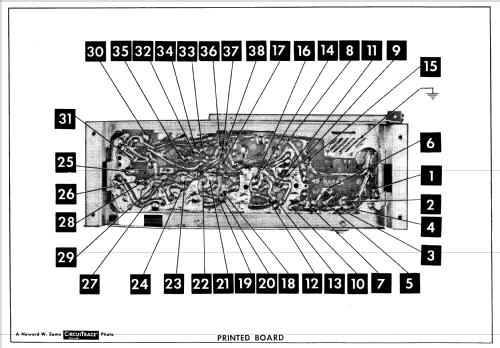

• Photofact Folder, Howard W. SAMS (Date 10-59, Set 458, Folder 15)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 875.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
