• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1958–1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240884

• • Brand: Silvertone

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 9018 Order=57K 9018 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 11 x 5 x 4 inch / 279 x 127 x 102 mm

• Notes

• Plastic clock-radio.

• Price in first year of sale
• 16.50 $

• Mentioned in
• Machine Age to Jet Age II (page 273.)

• Literature/Schematics (4)

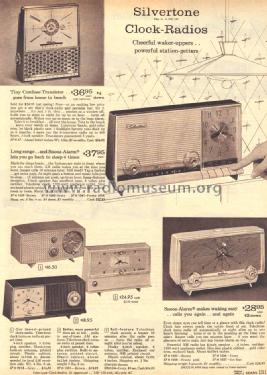

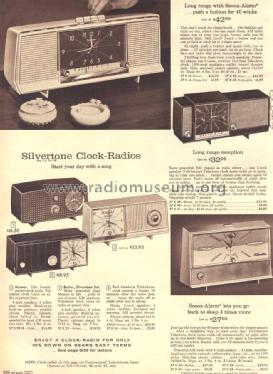

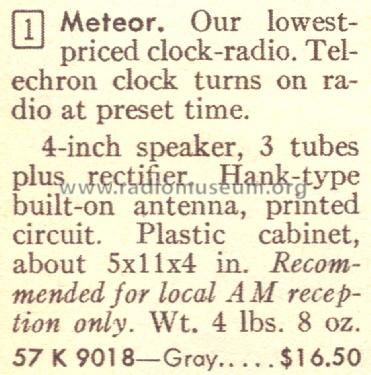

• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 926. Fall/Winter 1960, page 1311.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.

• Other Models

• Here you find 5464 models, 3199 with images and 4168 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
