Silvertone 9023 Ch= 528.53300
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78833
-
- Brand: Silvertone

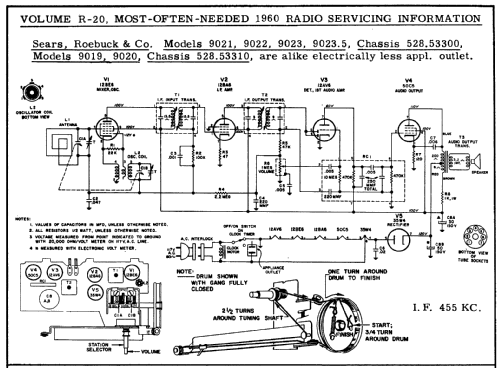

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 9023 Ch= 528.53300 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12.75 x 5.75 x 5.125 inch / 324 x 146 x 130 mm
- Notes
-
The Sears Silvertone 9023 is an AC operated 5 tube AM clock radio. AM band tuning range is 535 to 1620kHz. Has 1100W utility outlet. Cabinet color is Frosty Mint with gold colored trim.
The following models use the same chassis and schematic:
Model Cabinet Color 9021 Brown 9022 Ivory 9023 Frosty mint (light green) 90235 Harmony House Frosty pink
- Price in first year of sale
- 29.95 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-59, Set 429, Folder 13)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 876.)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
