• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143905

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2N370 2N372 2N371 2N373 2N373 2N213 2N109 2N270 2N270

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Dry Batteries / 8 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 9226 Order=57Y 092265 [Ch= 528.53430] - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13 x 9 x 6 inch / 330 x 229 x 152 mm

• Notes
• Battery operated 9 band transistorized AM receiver. Oval speaker 4" × 6".

• Price in first year of sale
• 169.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 475 folder 13 date 2-60)

• Literature/Schematics (4)

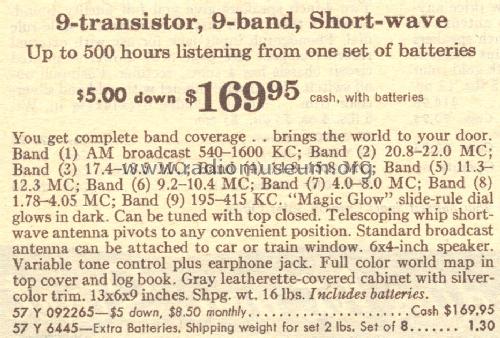

• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 875.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
