Silvertone F Ch= R4430; Sears, Roebuck & Co. (ID = 109313) Radio

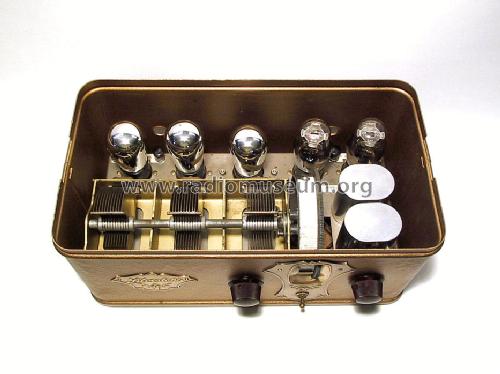

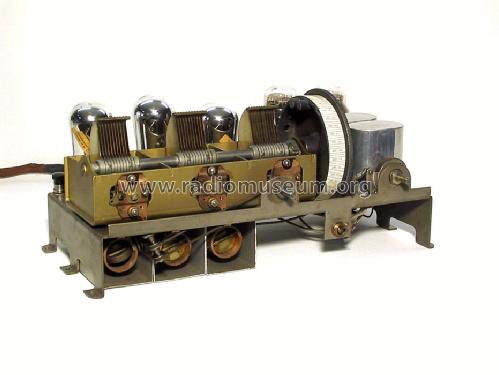

Sears, Roebuck & Co.: Silvertone F Ch= R4430 [Radio] ID = 109313 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone F Ch= R4430, Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1928 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX201A UX201A UX200A UX201A 112A or 171A
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Silvertone F Ch= R4430 - Sears, Roebuck & Co.; Chicago
Material Metal case

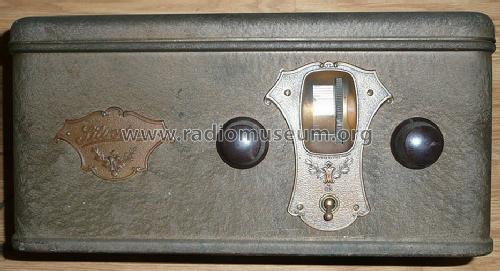

Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 15.1 x 7.5 x 8.25 inch / 384 x 191 x 210 mm
Notes

The Silvertone model F has one dial (primary tuning control knob) alled "Unitrol" by King.
The Sears model Silvertone E, 80, 81, F (R4430), 82, Power pack 82, J (R4433, H (R4432) have been made by King Mfg. Corp. and the schematics are shown in Gernsback page 207 to 209.
See also King model F with perhaps a different cabinet. See details and summaries about Sears catalogs etc.

Price in first year of sale 22.00 $
External source of data Ernst Erb

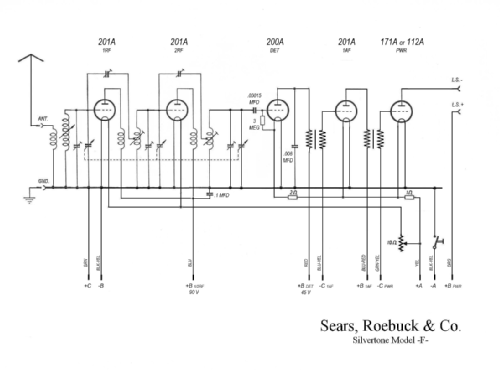

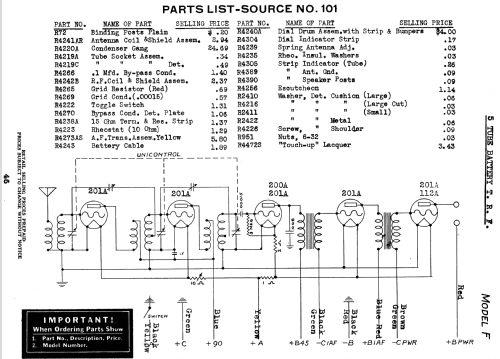

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in The Sears Silvertone Catalogs 1930-1942

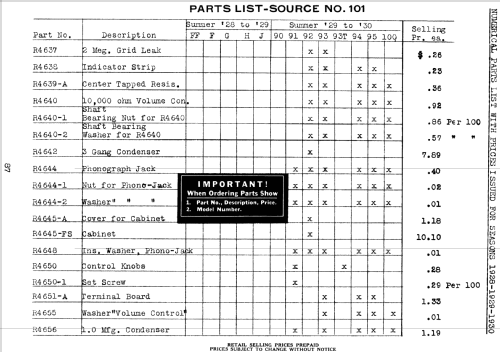

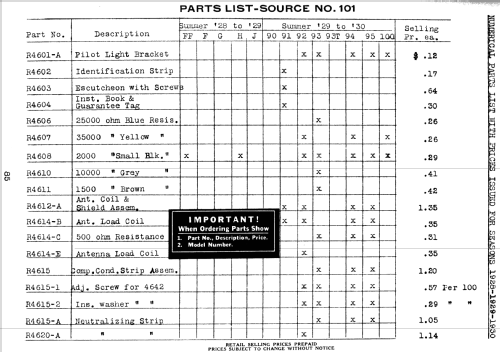

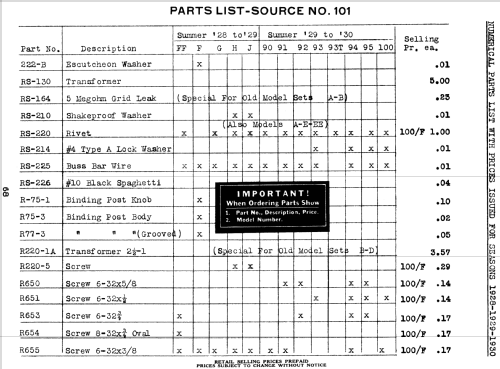

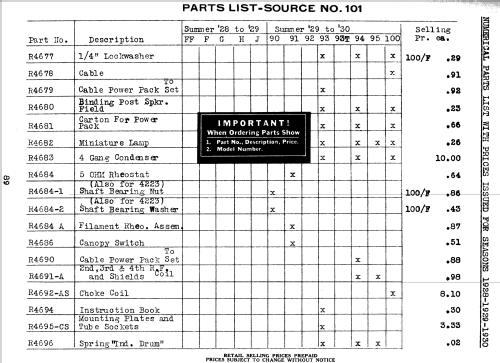

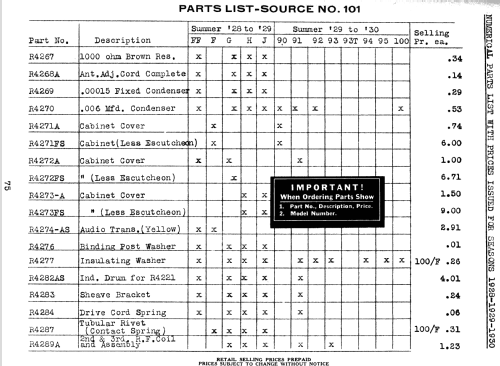

Literature/Schematics (1) Official Radio Service Manual and Complete Directory of all Commercial Wiring Diagrams (page 208 for King Mfg. Corp.)
