Silvertone 6-Tube Neutrodyne Model G
Category
Broadcast Receiver - or past WW2 Tuner
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (3)
Previous Next
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)

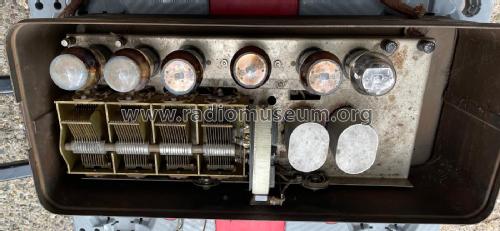

Chassis im unrestaurierten Zustand
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Bild-Legende
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Sears, Roebuck & Co. Silvertone 6-Tube Neutrodyne Model G (1)
Previous Next
Click on the schematic thumbnail to request the schematic as a free document.
Main principle
TRF without regeneration; 3 AF stage(s)
Tuned circuits
4 AM circuit(s)
Wave bands
Broadcast only (MW).
Power type and voltage
Storage and/or dry batteries / 6 & 4.5 & 2 x 45 Volt
Loudspeaker
- This model requires external speaker(s).
from Radiomuseum.org
Model: Silvertone 6-Tube Neutrodyne Model G - Sears, Roebuck & Co.; Chicago
Shape
Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD)
750 x 285 x 300 mm / 29.5 x 11.2 x 11.8 inch
Notes

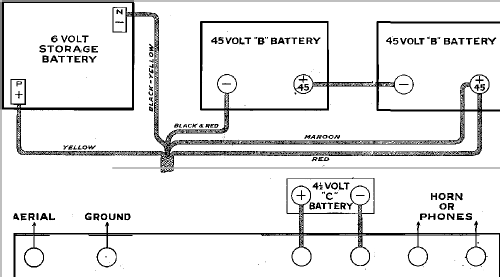

The Sears Silvertone 6-Tube Neutrodyne Model G is a battery operated 6 tube BC band receiver. Uses a 6V "A+" storage battery to power the filaments, a 4.5V "C-" battery to bias the two audio stages, Qty(2) 45V "B+" batteries to power the two audio stages and a 45V tap between the "B+" batteries to power the detector stage.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).
