• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1931

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 220345

• • Brand: Silvertone

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker

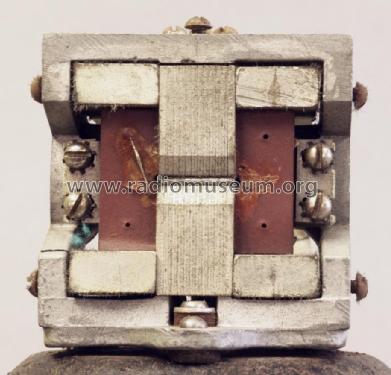

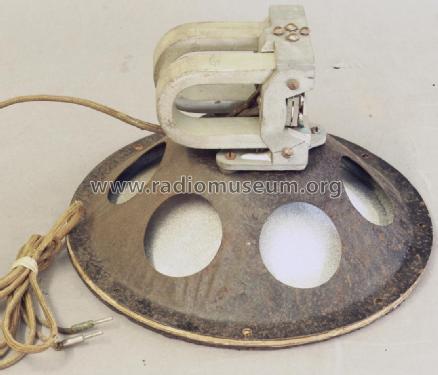

• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone Magnetic Speaker Order= 57E4835 - Sears, Roebuck & Co.; Chicago

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 12 x 11.5 x 8.5 inch / 305 x 292 x 216 mm

• Notes
• This Silvertone Magnetic Speaker "Walnut Finish" is a "balanced armature magnetic speaker with a Gothic style cabinet, rich walnut finish with a richly colored grille cloth ... finished in two tone walnut with a rich gold colored grille cloth that is in accord with any style furniture." Order number is 57E4835 1/4 with a price of $ 9.50. See details and summaries about Sears catalogs etc. The model before is different and has an other order code: 57D4831.

• Price in first year of sale
• 9.50 $

• Literature/Schematics (1)
• Sears, Roebuck Catalogs (Silvertone) (#162, Spring & Summer 1931, page 487)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
