Silvertone 2039 Medalist Order=57G 2039

Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 1672291) Radio Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 647771) Radio
Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 1672292) Radio Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 1672293) Radio
Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 1684831) Radio
Use red slider bar for more.

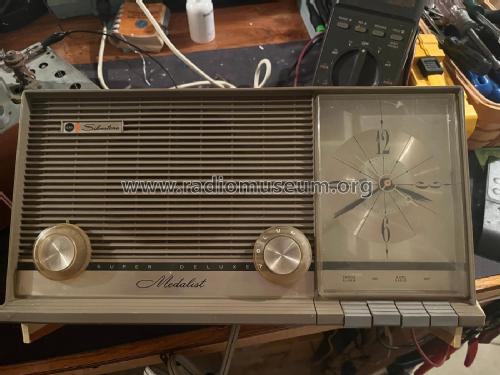

Silvertone 2039 Medalist Order=57G 2039; Sears, Roebuck & Co. (ID = 1672291) Radio
Sears, Roebuck & Co.: Silvertone 2039 Medalist Order=57G 2039 [Radio] ID = 1672291 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 2039 Medalist Order=57G 2039, Sears, Roebuck & Co.; Chicago (IL):
Scan from catalog Sears, Roebuck, 1961, page 1233.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1958–1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Silvertone 2039 Medalist Order=57G 2039 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 13 x 7.5 x 5 inch / 330 x 191 x 127 mm
Notes

Sears Silvertone Medalist 2039;
Big size analogue alarm clock, snooze function, gray finish, switched power outlet, 35 W power consumption.

Model Cabinet
2039 Gray and Ivory
2040 Blue and Ivory



Price in first year of sale 33.95 $
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (Winter 1962, page 130.)
Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1233.)
