• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223458

• • Brand: Silvertone

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Direct Current supply (DC) / 32 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.32 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

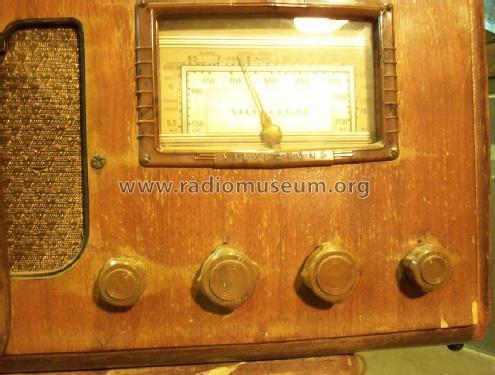

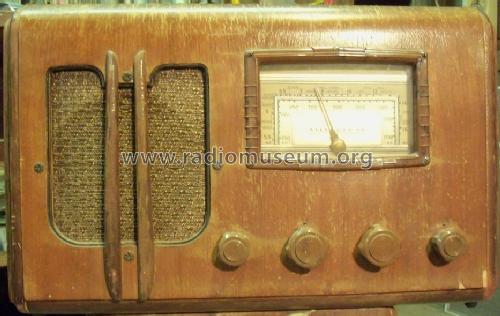

• Model: Silvertone Order= 57D 4612C - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 11.25 x 9.5 inch / 457 x 286 x 241 mm

• Price in first year of sale
• 24.95

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 177, 191)

• Literature/Schematics (3)

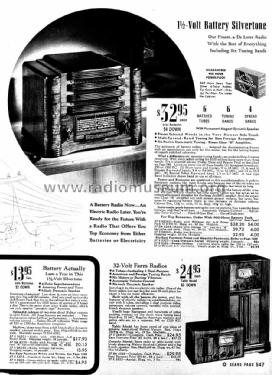

• Sears, Roebuck Catalogs (Silvertone) (#179, Fall & Winter 1939/40, page 933. #180, Spring & Summer 1940, page 547.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
