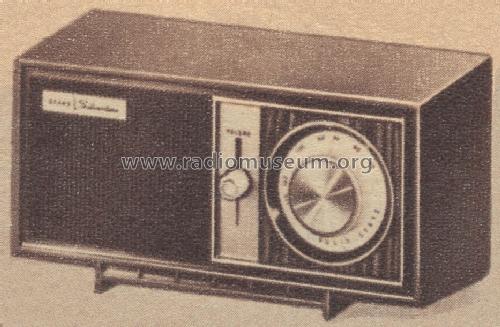

Silvertone Solid State 6002 Ch= 132.600201 Order=57P 6002
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244383
-
- Brand: Silvertone
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone Solid State 6002 Ch= 132.600201 Order=57P 6002 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 5 x 4.5 inch / 279 x 127 x 114 mm
- Notes
-
Sears Table Top AM Transistor Radio Model Silvertone Solid State 6002 Deep Brown ServiceNo.: 132.600201.
Power Consumption 8 Watts.
See also:
Sears Silvertone 6003 Solid State Moss Green Service No.: 132.600301.
- Price in first year of sale
- 14.95 $
- Literature/Schematics (4)

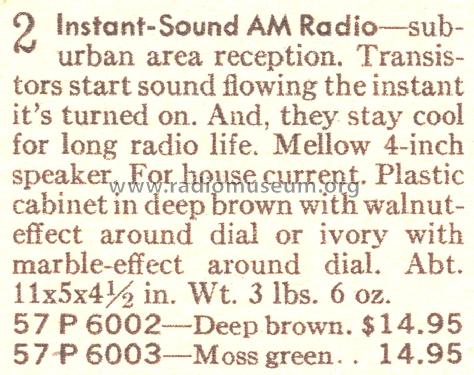

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1966, page 789.)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
