Silvertone Twin Twelve 1484 (Ch= 185.11040)

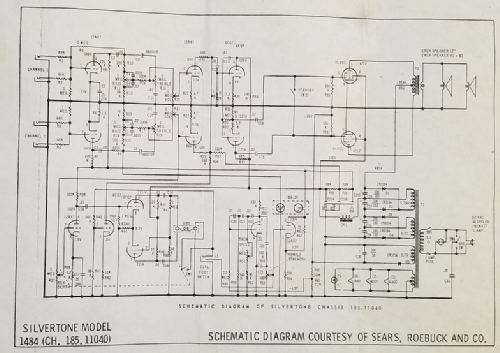

Silvertone Twin Twelve 1484 ; Sears, Roebuck & Co. (ID = 2281853) Ampl/Mixer

Silvertone Twin Twelve 1484 ; Sears, Roebuck & Co. (ID = 2282173) Ampl/Mixer
Silvertone Twin Twelve 1484 ; Sears, Roebuck & Co. (ID = 2281843) Ampl/Mixer Silvertone Twin Twelve 1484 ; Sears, Roebuck & Co. (ID = 2281844) Ampl/Mixer
Use red slider bar for more.
Silvertone Twin Twelve 1484 ; Sears, Roebuck & Co. (ID = 2281843) Ampl/Mixer
Sears, Roebuck & Co.: Silvertone Twin Twelve 1484 [Ampl/Mixer] ID = 2281843 1400x557
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone Twin Twelve 1484 (Ch= 185.11040), Sears, Roebuck & Co.; Chicago (IL):
Silvertone Twin Twelve Guitar Amplifier, all original, from my personal collection.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1966 ? Category: Audio Amplifier or -mixer
Valves / Tubes 8: 12AX7 12AX7 12AX7 6CG7 or 6FQ7 6CG7 or 6FQ7 12AX7 6L6GC 6L6GC
Main principle Audio-Amplification
Details Guitar Amplifier
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Silvertone Twin Twelve 1484 - Sears, Roebuck & Co.; Chicago
Material Leather / canvas / plastic - over other material
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 24.125 x 8.75 x 6.625 inch / 613 x 222 x 168 mm
Notes

Guitar amplifier with tremolo and reverberation circuits.  Requires separate speaker cabinet of twin (2) 12 inch speakers.  Uses 4 of 1N3194 and 1 of 1N3754 rectifiers in the power supply.  Utilizes two voltage doublers in the power supply, as well as, separate output tube bias supply.  Size specifications are for the amplifier unit only and do not include the speaker cabinet.

Net weight (2.2 lb = 1 kg) 17.5 lb (17 lb 8 oz) / 7.945 kg
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Dennis Craft. See "Data change" for further contributors.
