For model Silvertone Wayfarer 8227 Ch= 564.40050 Order= 57P 82271, Sears, Roebuck & Co.; Chicago (IL):
Courtesy of Bill Quinn.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20:
schematic requested
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 5 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Silvertone Wayfarer 8227 Ch= 564.40050 Order= 57P 82271 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 15 x 9 x 4.5 inch / 381 x 229 x 114 mm
Notes

The Sears Silvertone Wayfarer 8227 is an AC/Battery operated 20 transistor portable AM, FM, LW and SW receiver. Uses elliptical PM 5" x 7" speaker.  Has push-pull output stage, squelch control and battery indicator.  Jacks on back for earphone and tape recorder / phono.

Band Frequency Ranges are as follows:
LW Band.............145 - 360 kHz
AM Band.............525 - 1630 kHz
SW1 Band...........1.9 - 6.6 MHz
SW2 Band...........5.8 - 18.5 MHz
SW3 Band...........17 - 28.5 MHz
FM Band..............87 - 109 MHz


See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Sanyo Electric Co. Ltd., Moriguchi (Osaka), Japan (Sears Manufacturer Source Number Code 564).

Price in first year of sale 89.95 $
External source of data Bill Quinn
Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (TSM-92, pages 71-94 dated September 1968)

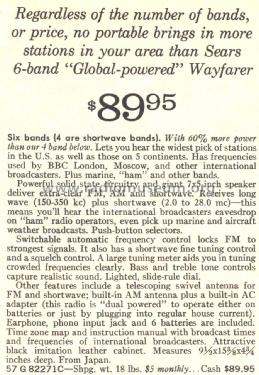

Literature/Schematics (2) Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1968, page 831. Fall/Winter 1968, page 1248.)
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1970, page 866. Spring/Summer 1971, page 902.)
Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 918.)

Model page created by Steven Sostrom. See "Data change" for further contributors.
