WLS Silvertone Portable

WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619765) Radio WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619766) Radio
WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619767) Radio WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619769) Radio
WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619770) Radio WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619771) Radio
WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619772) Radio WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619773) Radio
WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619774) Radio
Use red slider bar for more.
WLS Silvertone Portable ; Sears, Roebuck & Co. (ID = 619765) Radio
Sears, Roebuck & Co.: WLS Silvertone Portable [Radio] ID = 619765 247x330
Select picture or schematic to display from thumbnails on the right and click for download.
For model WLS Silvertone Portable, Sears, Roebuck & Co.; Chicago (IL):
Loop antenna is stored inside lid,

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

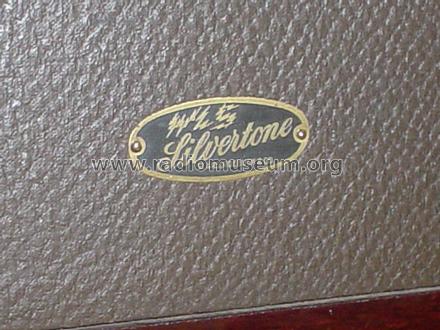

Silvertone
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX199 UX199 UX199 UX199 UX199
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Wave bands Broadcast only (MW).
Details

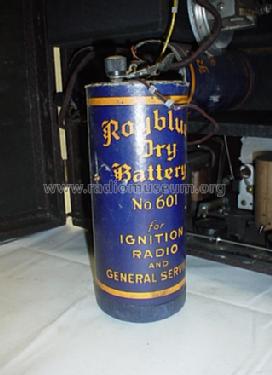

Power type and voltage Dry Batteries
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: WLS Silvertone Portable - Sears, Roebuck & Co.; Chicago

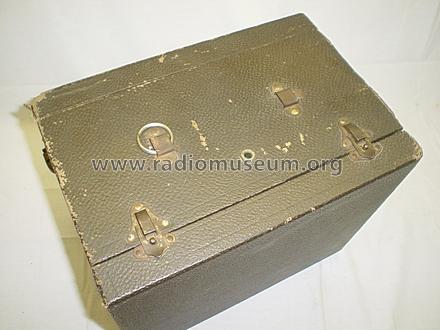

Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.5 x 10 x 8.5 inch / 318 x 254 x 216 mm
Notes

The WLS Silvertone Portable was built for Sears & Roebuck by the Trav-Ler Radio Corp. This WLS Silvertone radio is the same as this Trav-Ler Portable.

Model page created by Alan Larsen. See "Data change" for further contributors.
