148ML 'Trashcan' TBA 148 ML from 1948. Wireless receiver and remote amp

Seeburg Corp., J. P.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1946–1948
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 242747

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Jukebox-Coin operated Phonograph
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker

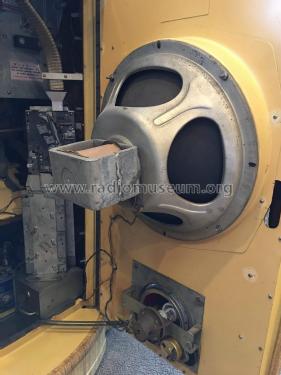

  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
  • Power out
  • 19 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 148ML 'Trashcan' TBA [148 ML from 1948. Wireless receiver and remote amp] - Seeburg Corp., J. P.; Chicago,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Notes

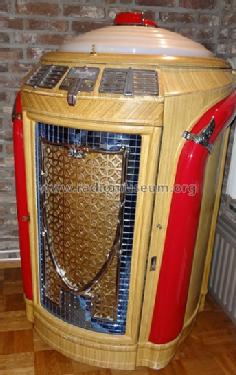

  • reminds to a trashcan.

  • Author
  • Model page created by Martin Rimmer. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model 148ML 'Trashcan' is part of the collections of the following members.

 Forum

Forum contributions about this model: Seeburg Corp., J. P.: 148ML 'Trashcan' TBA

Threads: 1 | Posts: 1

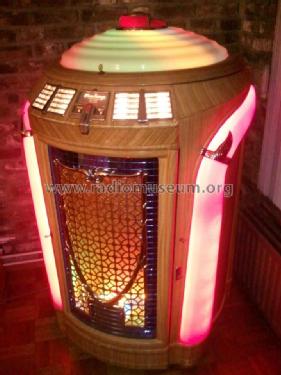

There were several versions of the Seeburg Symphonola 146/147/148 'Trashcan':

1946 - 146, dark wooden cabinet.  No door or lid animations. These were options offered later bt Seeburg.

1947 - 147, early types had a wooden cabinet and were dark. Late types had a dark faux wood finish on an aluminium cabinet.  Door or dome animations, also options.

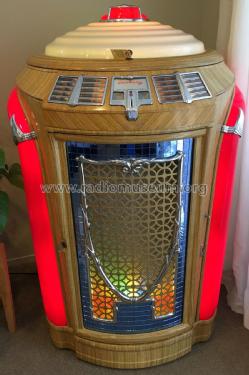

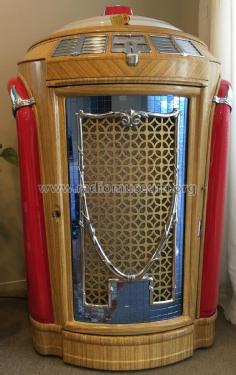

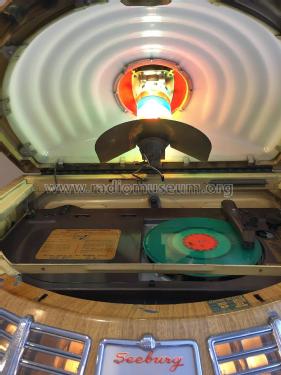

1948 - 148, all had a blonde faux wood finish on a aluminium cabinet.  Animation in dome and inside door.

S - Simple, 20 selector coils.  No wallbox stepper

M - Wireless master receiver control unit enabling the connection of up to 3 wired wallboxes and wireless and unlimited wireless wallboxes.  These wireless wallboxes sent pulses AM modulated at about 250Mhz down the 117v supply line.

L - RSA1 (Remote speaker Amplifier) built in for the connection of external CV speakers.

Martin Rimmer, 15.Oct.13
