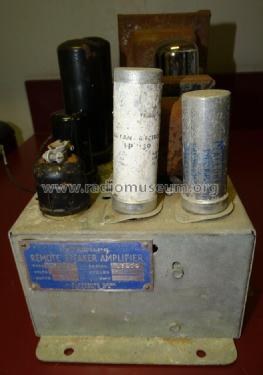

Remote Speaker Amplifier RSA1-L6

Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637584) Ampl/Mixer Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637586) Ampl/Mixer
Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637860) Ampl/Mixer Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637861) Ampl/Mixer
Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637863) Ampl/Mixer
Use red slider bar for more.
Remote Speaker Amplifier RSA1-L6; Seeburg Corp., J. P. (ID = 2637584) Ampl/Mixer
Seeburg Corp., J. P.: Remote Speaker Amplifier RSA1-L6 [Ampl/Mixer] ID = 2637584 1400x919
Select picture or schematic to display from thumbnails on the right and click for download.
For model Remote Speaker Amplifier RSA1-L6, Seeburg Corp., J. P.; Chicago, IL:
aus ebay, #384061525847, mit Erlaubnis des Verkäufers jrcradio

Country:  United States of America (USA)
Manufacturer / Brand:  Seeburg Corp., J. P.; Chicago, IL
Year: 1946 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6J5 6L6 6L6 5U4GB
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Remote Speaker Amplifier RSA1-L6 - Seeburg Corp., J. P.; Chicago,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 12 x 8 x 5.25 inch / 305 x 203 x 133 mm
Net weight (2.2 lb = 1 kg) 20 lb (20 lb 0 oz) / 9.080 kg

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
