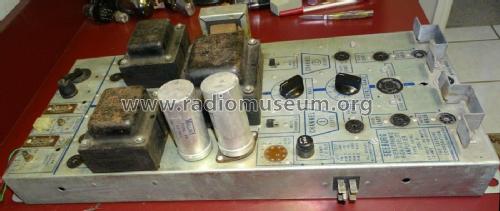

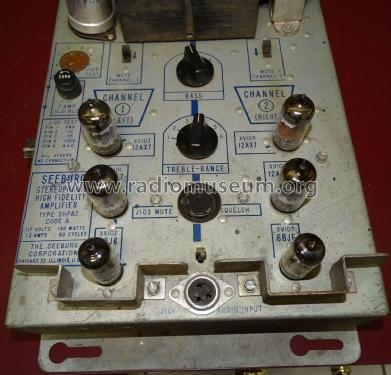

Stereophonic High Fidelity Amplifier SHFA2
Seeburg Corp., J. P.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Seeburg Corp., J. P.; Chicago, IL
- Year
- 1960 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 328914
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 2
- Semiconductors
- Selenium-Rectifier Selenium-Rectifier 2N591 2N591
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 32 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereophonic High Fidelity Amplifier SHFA2 - Seeburg Corp., J. P.; Chicago,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 5.5 x 20 inch / 229 x 140 x 508 mm
- Notes
-
Jukebox amplifier, stereo.
- Net weight (2.2 lb = 1 kg)
- 29 lb (29 lb 0 oz) / 13.166 kg
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
