Oscilloscope SM112

SE Laboratories Ltd. Wells, UK

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 177801

 Technical Specifications

  • Number of Transistors
  • -1
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

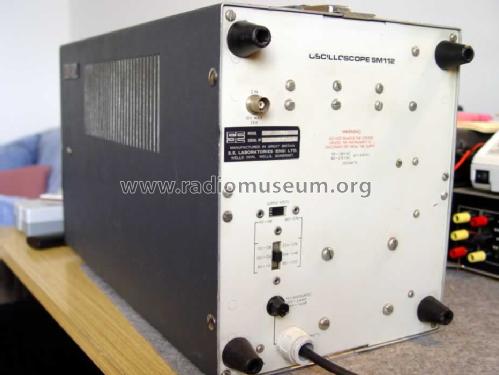

  • Model: Oscilloscope SM112 - SE Laboratories Ltd. Wells, UK
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 216 x 280 x 500 mm / 8.5 x 11 x 19.7 inch
  • Notes
  • Analog dual channel oscilloscope SM 112 produced by the SE Laboratories Ltd in Wells, Somerset, England. Working frequency band of DC to 100 MHz. Screen tube Telefunken with acceleration voltage 11 kV ensures sufficient brightness in the quickest time base. The apparatus is modular construction - blocks SM 112-main frame, SM 602-time base and SM 599-vertical amplifier. Guest Dave Hemming, an ex SE Labs employee told us the following: "This company had no connection whatsover with SE Laboratories Inc., Santa Clara, USA."
  • Net weight (2.2 lb = 1 kg)
  • 13.8 kg / 30 lb 6.3 oz (30.396 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
