Transistor Six TR-221 (601)

Transistor Six TR-221 ; Seminole; Sans & (ID = 2290416) Radio Transistor Six TR-221 ; Seminole; Sans & (ID = 2290418) Radio
Transistor Six TR-221 ; Seminole; Sans & (ID = 1569559) Radio Transistor Six TR-221 ; Seminole; Sans & (ID = 1569560) Radio
Transistor Six TR-221 ; Seminole; Sans & (ID = 2290414) Radio Transistor Six TR-221 ; Seminole; Sans & (ID = 2290415) Radio
Transistor Six TR-221 ; Seminole; Sans & (ID = 2290417) Radio
Use red slider bar for more.
Transistor Six TR-221 ; Seminole; Sans & (ID = 2290416) Radio
Seminole; Sans &: Transistor Six TR-221 [Radio] ID = 2290416 1280x778
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Six TR-221 (601), Seminole; Sans & Streiffe Inc.; Brookfield (IL):
ebay.com 202408856963 seller mrschwootz

Country:  United States of America (USA)
Manufacturer / Brand:  Seminole; Sans & Streiffe Inc.; Brookfield (IL)
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.08 W (unknown quality)
from Radiomuseum.org Model: Transistor Six TR-221 - Seminole; Sans & Streiffe Inc.
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 4.5 x 2 x 1.25 inch / 114 x 51 x 32 mm
Notes

Seminole 6-Transistor 1-Band Portable AM Radio Model 601.

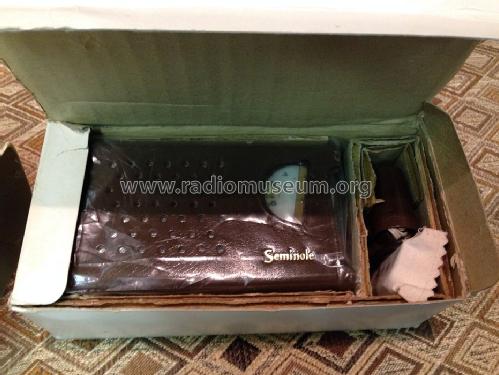

Earphone Jack, Earphone, Leather Case.

Made in Japan

Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (TSM-28, September 1963)

Model page created by Franz Scharner. See "Data change" for further contributors.
