• Country
• Japan

• Manufacturer / Brand
• Senator; Japan

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85121

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220; (8 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

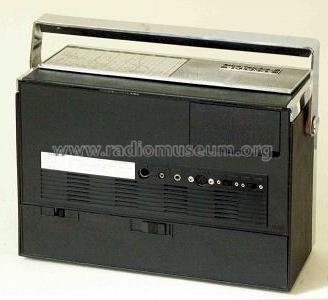

• Model: Multiband DeLuxe FV-1710 - Senator; Japan

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 6 Band World Receiver; FM 88...108 MHz, LW 150...370 kHz; MW 530...1600 kHz and 3 × SW (1,4-26,5 MHz), BFO, Finetuning, AFC.

  Type also known as Sharp FV-1710 with different case design.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Senator; Japan
