• Year
  • 1925/1926
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 17030

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector; Crystal-detection 2 circuits (no tubes)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sensiblator - Sensiblator; Frankfurt a.M.
  • Notes

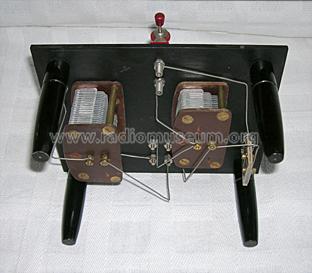

  • Kristall-Detektor-Apparat: Sekundärschaltung mit Spulenkoppler und zwei Drehkondensatoren.
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Info Dr. H. Börner without schematic
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
