For model 333-W, Sentinel Radio Corp., Evanston, Illinois

Country:  United States of America (USA)
Manufacturer / Brand:  Sentinel Radio Corp., Evanston, Illinois
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BE6 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 333-W - Sentinel Radio Corp., Evanston
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.5 x 7.5 x 7 inch / 292 x 191 x 178 mm
Notes Pendel-Audion bei UKW
4" x 6" PM elliptical speaker.
Extension line cord for 230V.
Color=Walnut.
Net weight (2.2 lb = 1 kg) 6.9 lb (6 lb 14.4 oz) / 3.133 kg
External source of data Ernst Erb

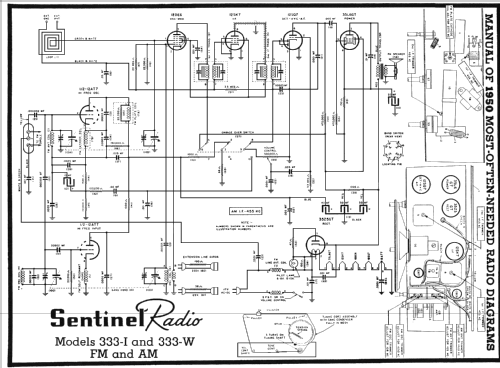

Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950
