1U-352

1U-352; Sentinel Radio Corp. (ID = 181824) Radio

1U-352; Sentinel Radio Corp. (ID = 2102640) Radio

1U-352; Sentinel Radio Corp. (ID = 2102641) Radio

1U-352; Sentinel Radio Corp. (ID = 2102642) Radio

1U-352; Sentinel Radio Corp. (ID = 2102643) Radio
1U-352; Sentinel Radio Corp. (ID = 2128419) Radio 1U-352; Sentinel Radio Corp. (ID = 2102639) Radio
1U-352; Sentinel Radio Corp. (ID = 2128420) Radio 1U-352; Sentinel Radio Corp. (ID = 2128421) Radio
1U-352; Sentinel Radio Corp. (ID = 2128422) Radio 1U-352; Sentinel Radio Corp. (ID = 2128423) Radio
1U-352; Sentinel Radio Corp. (ID = 2128424) Radio 1U-352; Sentinel Radio Corp. (ID = 2128425) Radio
Use red slider bar for more.
1U-352; Sentinel Radio Corp. (ID = 2128419) Radio
Sentinel Radio Corp.: 1U-352 [Radio] ID = 2128419 1400x1120
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1U-352, Sentinel Radio Corp., Evanston, Illinois

Country:  United States of America (USA)
Manufacturer / Brand:  Sentinel Radio Corp., Evanston, Illinois
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117V= 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 1U-352 - Sentinel Radio Corp., Evanston
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

SENTINEL MODEL 1U-352 is a AC-DC Operated AM Superheterodyne Receiver.

Literature/Schematics (1) Beitman Radio Diagrams, Vol. 14, 1954

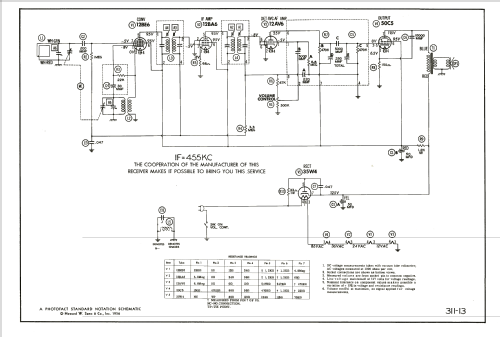

Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 311 Folder 13 Dated 3-56)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
