5700B ; Sentinel Radio Corp. (ID = 1491558) Radio

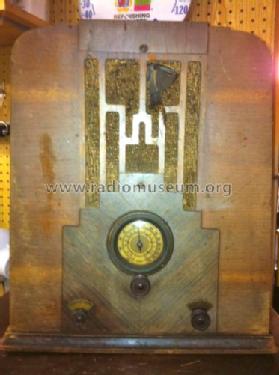

Sentinel Radio Corp.: 5700B [Radio] ID = 1491558 374x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5700B, Sentinel Radio Corp., Evanston, Illinois

Country:  United States of America (USA)
Manufacturer / Brand:  Sentinel Radio Corp., Evanston, Illinois
Year: 1935 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 5700B - Sentinel Radio Corp., Evanston
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
