• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304043

• Number of Tubes
• 6

• Valves / Tubes
• 57 57 58 6Q7 2A5 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 50 - 60 Hz; 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

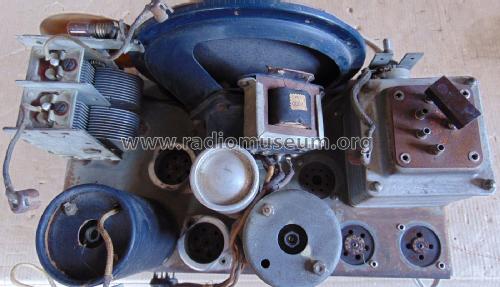

• Model: 650 - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 225 x 185 mm / 16.5 x 8.9 x 7.3 inch

• Notes

• See similar model Sentinel 620

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
