RU95

RU95; Société Française (ID = 961593) Commercial Re RU95; Société Française (ID = 961658) Commercial Re
RU95; Société Française (ID = 961659) Commercial Re RU95; Société Française (ID = 961660) Commercial Re
RU95; Société Française (ID = 961661) Commercial Re RU95; Société Française (ID = 961662) Commercial Re
RU95; Société Française (ID = 961663) Commercial Re
Use red slider bar for more.
RU95; Société Française (ID = 961593) Commercial Re

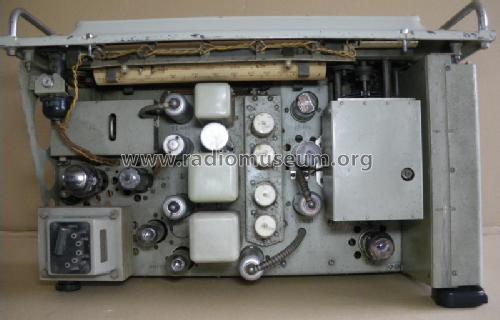

Société Française: RU95 [Commercial Re] ID = 961593 800x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model RU95, Société Française Radio - Electrique; Paris

Country:  France
Manufacturer / Brand:  Société Française Radio - Electrique; Paris
Year: 1961 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 10: 6J6 ECH33 R219 6H6 6AF7G ECH33 EBF32 ECH33 6H6 5Y3GB REG100 REG100
Main principle Superheterodyne (common); ZF/IF 472 kHz; 1 AF stage(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: RU95 - Société Française Radio -
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 570 x 310 x 350 mm / 22.4 x 12.2 x 13.8 inch
Notes Récepteur SFR RU95:
10 gammes: 50-98 / 98-200 / 200-400 / 400-850 / 850-1800 kHz / 1,8-3,8 / 3,8-17 / 17-30 MHz; I.F. 472+-5 kHz
2 tubes régulateur REG100.
Récepteur marine successeur du RU93.
Net weight (2.2 lb = 1 kg) 75 kg / 165 lb 3.2 oz (165.198 lb)

Model page created by Michel Vernet. See "Data change" for further contributors.



All listed radios etc. from Société Française Radio - Electrique; Paris
Here you find 5 models, 5 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
