- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.2 上海电子器材二厂 Shanghai No.2 Electronic Equipment Factory; Shanghai
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180815
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s); Reflex
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

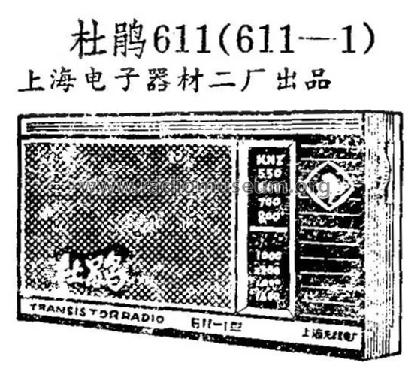

- Model: Dujuan 杜鹃 611-1 - Shanghai No.2 上海电子器材二...
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 175 x 101 x 48 mm / 6.9 x 4 x 1.9 inch
- Notes
- The radio models Dujuan 杜鹃 611 and 611-1 are sharing the same schematic. They receive broadcast 535 - 1605 kc. The IF frequency is most probably 465 kc. Data: 1 mV/m 100 mW output. Loudspeaker 8 ohm.
- Literature/Schematics (1)
- 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 50.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 5 models, 4 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Shanghai No.2 上海电子器材二厂 Shanghai No.2 Electronic Equipment Factory; Shanghai
