• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 179507

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Feilo 飞乐 2J1 - Shanghai No.2 上海无线电二厂
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 372 x 213 x 154 mm / 14.6 x 8.4 x 6.1 inch

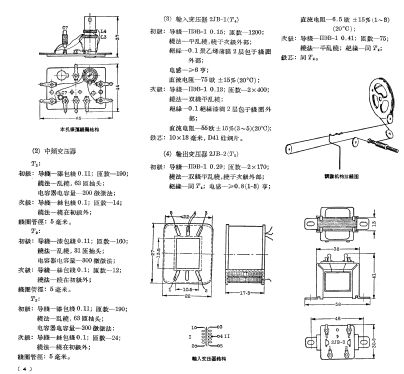

  • Notes
  • Model Feilo 飞乐 2J1 (Philo, Feile, Happy Flying) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc. Sensitivity 灵敏度: < ? mV/m. Selectivity 选择性: > ? dB S/N. Set audio output 额定功率: 150 mW. The IF 中频频率 is 465 kc. The transistor 2Z301 can be exchanged with 3AG1 and the Z171 with 3AX13 and 2Z172 with 3AX14. The diode 1Z1 is about a 2AP9.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
