Red Lantern 红灯 735

Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 794382) Radio

Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 794383) Radio
Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 794392) Radio Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 794396) Radio
Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 793968) Radio Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 799775) Radio
Use red slider bar for more.
Red Lantern 红灯 735; Shanghai No.2 上海无线电 (ID = 794392) Radio
Shanghai No.2 上海无线电: Red Lantern 红灯 735 [Radio] ID = 794392 900x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model Red Lantern 红灯 735, Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai:
My friend's collection.

Country:  People's Republic of China
Manufacturer / Brand:  Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai
Year: 1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 29: 3D02G-B 3DG140C 3DG140C 3DG6C 3DG6C 3DG6C 3DG6C 3DG6C 4D01C 3DG6C 3DG6C 3DG6C 3DG6C 3DG6C 3DG6C 3DG6C 3AG1E 3AX31B 3DG6C 3DG6C 3DG6C 3CG14 3AX31D 3DX201B 3AD6C 3AD6C 3AD6B 3AX31B 3AX31B
Main principle Superhet with RF-stage; ZF/IF 465/10700 kHz
Tuned circuits 8 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC 220 or Battery 8 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Red Lantern 红灯 735 - Shanghai No.2 上海无线电二厂
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 390 x 248 x 103 mm / 15.4 x 9.8 x 4.1 inch
Notes China's most advanced portable transistor radio, model Red Lantern 红灯 (Hongdeng), uses Mosfet and AGC-controlled Dual-Gate Mosfet Transistors as RF preamplifiers. The FM IF section contains beside 5 L/C circuits two four-pole ceramic filters. In 1974, the Shanghai No.2 Radio Factory developed and produced 200 units of the Red Lantern model 735 all-bands portable upper-class radio. This was built for the needs of users and special departments who required high sensitivity reception. In 1976, Red Lantern 735 won the first prize from the 6th National Radio Appraisal Meeting.
Net weight (2.2 lb = 1 kg) 6.6 kg / 14 lb 8.6 oz (14.537 lb)

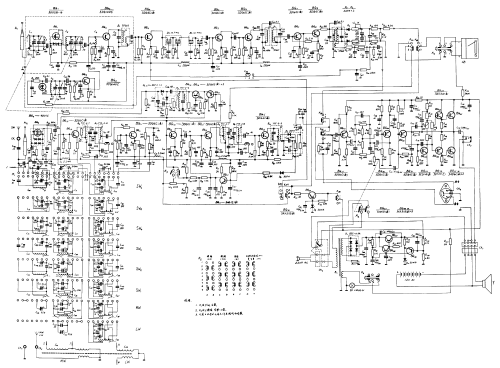

Literature/Schematics (1) 16-Radio Manual Shanghai No.2 Radio Factory, 1981 (71 pages) (page 22.)

Model page created by Taili ZHANG. See "Data change" for further contributors.



All listed radios etc. from Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai
Here you find 62 models, 58 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
