• Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210217

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Red Lantern 602 - Shanghai No.2 上海无线电二厂
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 4 x 2.6 x 1.3 inch / 102 x 66 x 33 mm
  • Notes
  • Comes with detachable wrist strap. No brand name shows anywhere on radio - it does have the "Red Lantern" symbol on the front. Only visible characters on the printed circuit board are "602C".
  • Net weight (2.2 lb = 1 kg)
  • 0 lb 7 oz (0.438 lb) / 0.199 kg
  • Literature/Schematics (1)

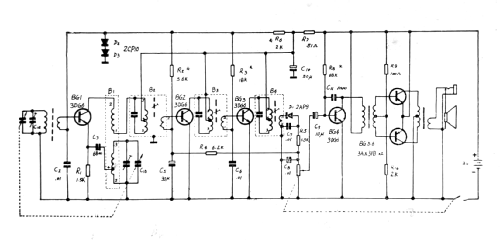

  • -- Schematic
