• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182110

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 3DG6B 3DG6B 3DG6B 3DG6B 3AX31B 3AX31B 3AX31B 3AX83B 3AX83B 2AP10 2AP10 2DS1 2DS1 2D52

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

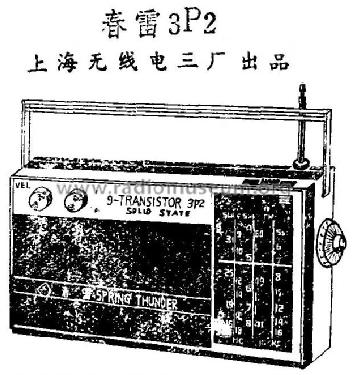

• Model: Spring Thunder 春雷 3P2 [3DG6B ] - Shanghai No.3 上海无线电三厂

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 140 x 50 mm / 9.3 x 5.5 x 2 inch

• Notes
• The radio model Spring Thunder 春雷 3P2 (Chunlei) offers the following key features 主要性能: Frequency range 频率范围: broadcast 535 - 1605 kc and SW 3.9 - 8.5 mc plus 8.5 - 18 mc. Sensitivity 灵敏度: < 1 mV/m. Selectivity 选择性: > 26 dB S/N. Set audio output 额定功率: 250 mW (800 mW). Electric power consumption 电源消耗 at zero signal 零信号: 25 mA, at max. it is 200 mA. The IF 中频频率 is most probably 465 kc. Loudspeaker impedance is 8 ohm. 5 diodes.

• Literature/Schematics (1)
• 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 345.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
