• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182298

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• 3AG1E 3AG1B 3AG1B 3AG1B 3AX31D 3AX31D 3AX31B 3AX31B 3AX31B 3BX3 3AD6C 3AD6C 2AP10 2AP10 2CW15 2DS1

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Spring Thunder 春雷 3T9 - Shanghai No.3 上海无线电三厂

• Shape
• Tablemodel, low profile (big size).

• Notes
• The radio model Spring Thunder 春雷 3T9 (Chunlei 春雷 3T9) offers the following key features 主要性能: Frequency range 频率范围: broadcast 535 - 1605 kc and SW 3.9 - 8.5 mc and 8.5 - 18 mc. Sensitivity 灵敏度: < 1 mV/m. Selectivity 选择性: > 20 dB S/N. The IF 中频频率 is most probably 465 kc. 4 diodes plus rectifier (QSE-1A/30V).

• Literature/Schematics (1)

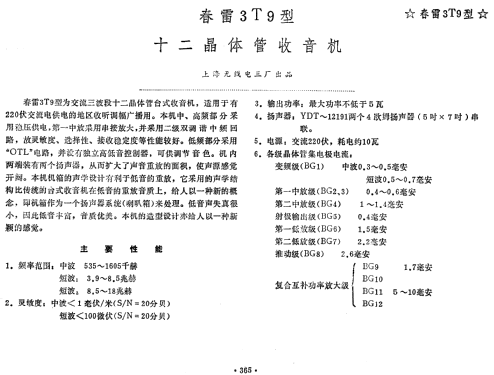

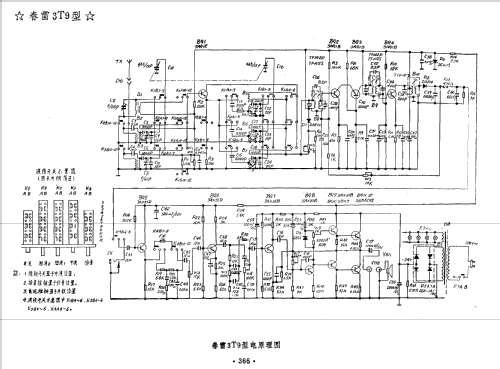

• 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 365.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
