• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180163

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 3AG1D 3AG1B 3AG1B 3AX31C 3AX31B 3AX31B 2Z800A 2Z800A MM5369 MM5387AA

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / AC 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Haiyan 海燕 K103 Clock Radio - Shanghai 101 上海一O一厂

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 440 x 195 x 170 mm / 17.3 x 7.7 x 6.7 inch

• Notes
• The clock radio model Haiyan 海燕 K103 (Petrel, also Sea Swallow) has the following key features 主要性能: Frequency range 频率范围: broadcast band 525 - 1605 kc plus SW 3.9 - 12 mc. Loudspeaker 8 ohm. Clock/Timer/Alarm has the ICs MM5369 and MM5387AA plus two transistors, a 3DG201B and a 3DX201B and 4 diodes plus SL-1424-11P. 8 transistors for reception.

• Mentioned in
• 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 417.)

• Literature/Schematics (1)

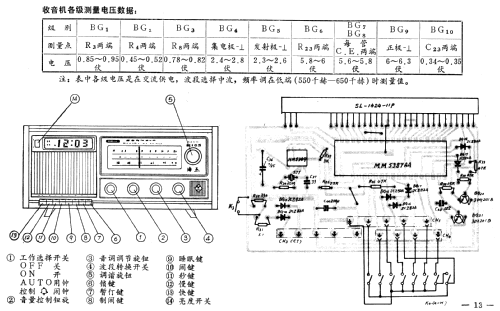

• 19-Radio Manual Shanghai 101 Factory, 1981 (26 models) (page 12.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
