Petrel 海燕 B321

Petrel 海燕 B321; Shanghai 101 上海一 (ID = 807108) Radio

Petrel 海燕 B321; Shanghai 101 上海一 (ID = 807109) Radio

Petrel 海燕 B321; Shanghai 101 上海一 (ID = 807110) Radio

Petrel 海燕 B321; Shanghai 101 上海一 (ID = 814373) Radio

Petrel 海燕 B321; Shanghai 101 上海一 (ID = 814376) Radio
Petrel 海燕 B321; Shanghai 101 上海一 (ID = 805056) Radio Petrel 海燕 B321; Shanghai 101 上海一 (ID = 814773) Radio
Use red slider bar for more.
Petrel 海燕 B321; Shanghai 101 上海一 (ID = 805056) Radio

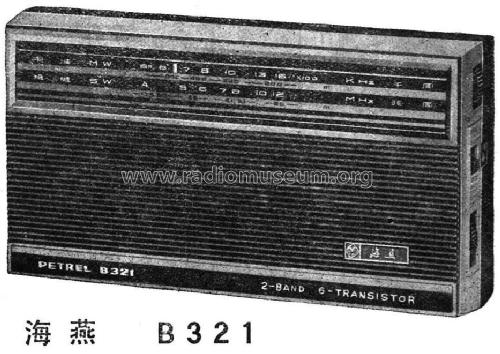

Shanghai 101 上海一: Petrel 海燕 B321 [Radio] ID = 805056 933x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model Petrel 海燕 B321, Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai:

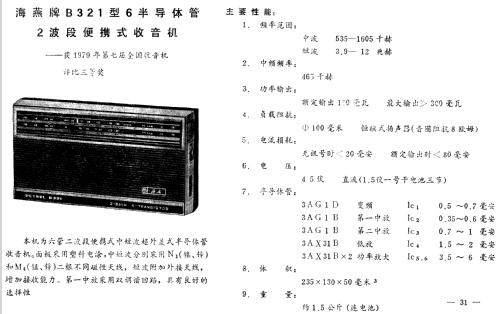

Picture from PRC: 19-Radio manual "Shanghai 101 Factory" of 1981, page 31, as a reference when somebody is uploading real photos - and as reference for collectors, comparing models. Special thanks to Taili ZHANG, Beijing for his scan for RMorg.

Country:  People's Republic of China
Manufacturer / Brand:  Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 3AG1D 3AG1B 3AG1B 3AX31B 3AX31B 3AX31B 2CP10 2AP9
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Petrel 海燕 B321 - Shanghai 101 上海一O一厂
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 130 x 50 mm / 9.3 x 5.1 x 2 inch
Notes The radio model Petrel 海燕 B321 (Haiyan, Sea Swallow) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc plus SW 3.9 - 12 mc. 8 ohm loudspeaker.
Mentioned in 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 19.)
Literature/Schematics (1) 19-Radio Manual Shanghai 101 Factory, 1981 (26 models) (page 31.)

Model page created by Ernst Erb. See "Data change" for further contributors.
