Petrel 海燕 T241; Shanghai 101 上海一 (ID = 1277508) Radio
Shanghai 101 上海一: Petrel 海燕 T241 [Radio] ID = 1277508 800x433
Select picture or schematic to display from thumbnails on the right and click for download.
For model Petrel 海燕 T241, Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai:
Ebay auction by user radio_larry 251091369505

Country:  People's Republic of China
Manufacturer / Brand:  Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14: 3AG1 3AG1C 3AG1C 3AG1C 3AX31C 3DG6 3AX31B 3DG6 3BX3B 3AX31B 3AX31C 3DG12 3AD6 3AD6 2AP9 2AP9 2CW15 2CW17 2CW17 2CK
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Petrel 海燕 T241 - Shanghai 101 上海一O一厂
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes The radio model Petrel 海燕 T241 (Haiyan, also Sea Swallow) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc plus SW 3.9 - 8 mc, 8 - 14 mc and 14 - 22 mc. The model became a national price in 1981. One loudspeaker is for 4 ohm, the other for 8 ohm.
Collectors' prices

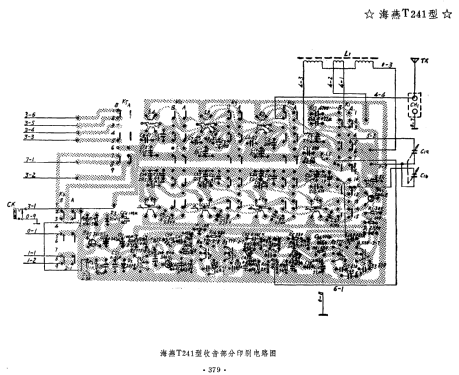

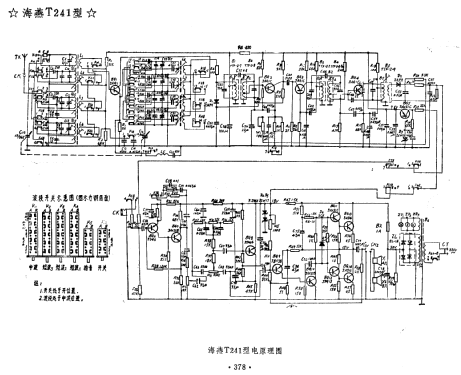

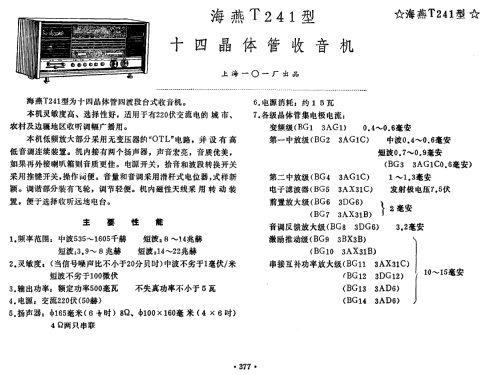

Mentioned in 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 377.)
Literature/Schematics (1) 19-Radio Manual Shanghai 101 Factory, 1981 (26 models) (page 1.)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Shanghai 101 上海一O一厂 Shanghai 101 Factory; Shanghai
Here you find 28 models, 28 with images and 27 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
