- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176111
from internet, unknown owner
from internet, unknown owner

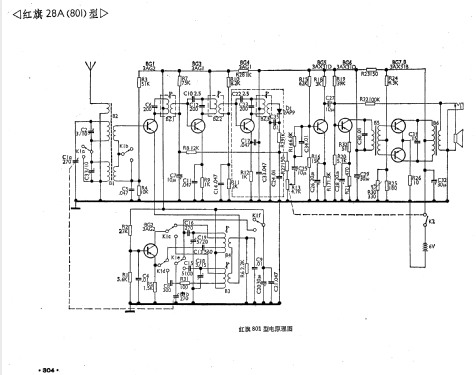

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hongqi 红旗 801 - Shanghai No.3 上海无线电三厂
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 137 x 65 mm / 9.3 x 5.4 x 2.6 inch
- Notes
- The models Hongqi 红旗 28A and 801 have broadcast (as all at that time from 535 - 1605 kHz) and SW 4.5 - 12 MHz. The two models share the same case picture but not the same schematic.
- Literature/Schematics (1)

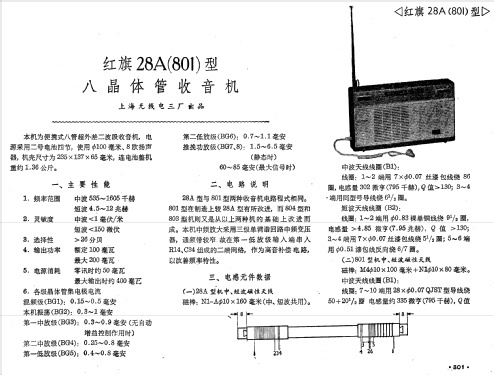

- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 301.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
