Shanghai 上海 157-D
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- 1957/1958 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Wooden case
- from Radiomuseum.org
- Model: Shanghai 上海 157-D - Shanghai 上海无线电厂 Shanghai
- Tablemodel, low profile (big size).
- Same tube line up as model 52-AA. The family of Shanghai 157 with the same documentation on page 53 ff consists of 157-B, 157-D, 157-E, 157-F and 157-H. The difference is the cabinet. We believe that 157-H has a bakelite or plastic case but are not sure. The models receive broadcast 550 - 1600 kHz and SW 6 - 18 MHz.
- Literature/Schematics (1)

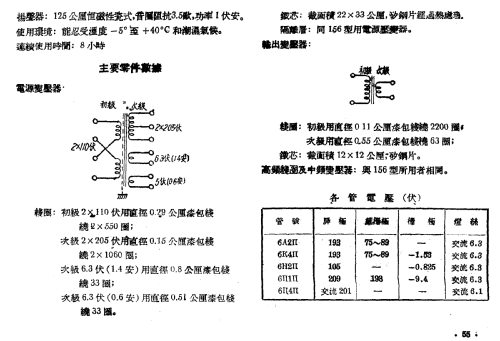

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 53.)
- Model page created by Ernst Erb. See "Data change" for further contributors.
