• Year
  • 1957/1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176782

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Shanghai 上海 157-E - Shanghai 上海无线电厂 Shanghai
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

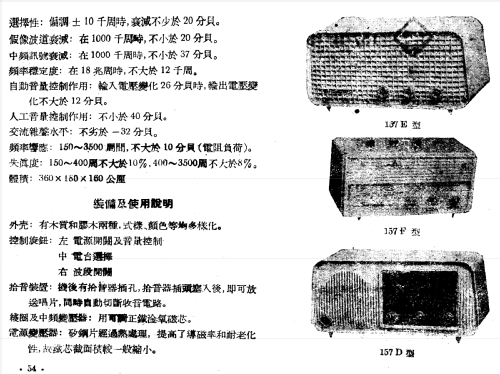

  • Same tube line up as model 52-AA. The family of Shanghai 157 with the same documentation on page 53 ff consists of 157-B, 157-D, 157-E, 157-F and 157-H. The difference is the cabinet. We believe that 157-H has a bakelite or plastic case but are not sure. The models receive broadcast 550 - 1600 kHz and SW 6 - 18 MHz.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
