Shanghai 上海 154
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Wooden case
- from Radiomuseum.org

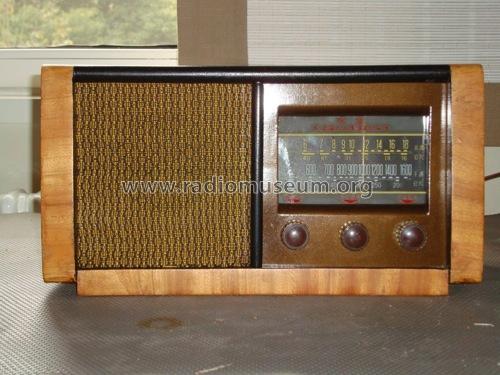

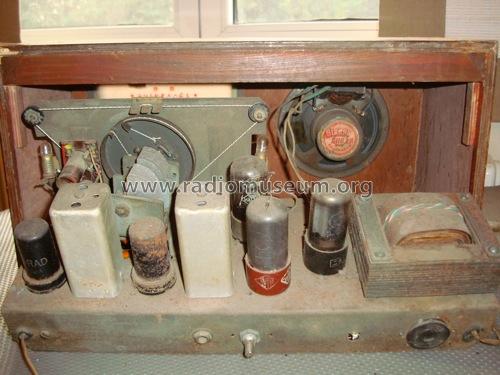

- Model: Shanghai 上海 154 - Shanghai 上海无线电厂 Shanghai
- Tablemodel, low profile (big size).
- Shanghai 上海 154 receives broadcat 550 - 1600 kHz and SW 5.5 - 18.5 MHz and has the same data as 152 but a wooden case.
- Literature/Schematics (1)
- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 37.)
- Model page created by Ernst Erb. See "Data change" for further contributors.
