Test-O-Matic C2

Test-O-Matic C2; Shell Electronic Mfg (ID = 2568473) Equipment Test-O-Matic C2; Shell Electronic Mfg (ID = 2568474) Equipment
Test-O-Matic C2; Shell Electronic Mfg (ID = 2568475) Equipment
Use red slider bar for more.
Test-O-Matic C2; Shell Electronic Mfg (ID = 2568473) Equipment

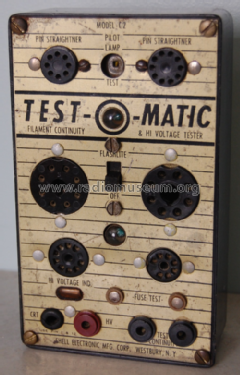

Shell Electronic Mfg: Test-O-Matic C2 [Equipment] ID = 2568473 500x781
Select picture or schematic to display from thumbnails on the right and click for download.
For model Test-O-Matic C2, Shell Electronic Mfg. Corp.; Westbury (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Shell Electronic Mfg. Corp.; Westbury (NY)
Year: 1956 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Test-O-Matic C2 - Shell Electronic Mfg. Corp.;
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 155 x 45 mm / 3.5 x 6.1 x 1.8 inch
Notes

The Model C2 Test-O-Matic checks tube filament , fuse, and lamp continuity.

A neon lamp also allows for high voltage testing.

Model page created by George Papaiz. See "Data change" for further contributors.
