- Country
- United States of America (USA)
- Manufacturer / Brand
- Sheridan Electronics Corp., Warwick Mfg. Corp
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57861
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

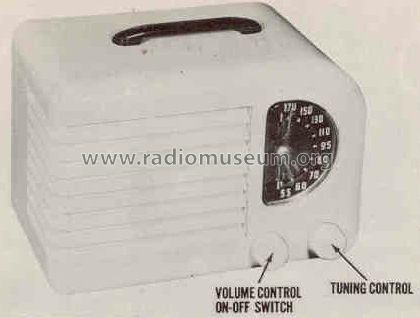

- Model: Vogue 554R - Sheridan Electronics Corp.,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Built-in loop antenna. Sams photofact set 8 folder 468-32 date 11-46 features the Sheridan models 553R and 554R as the same schematic.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (11/1946 40x-32)
