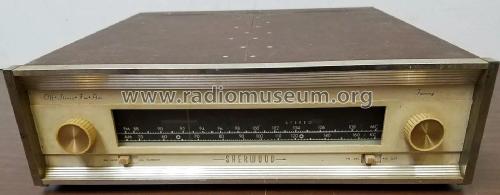

FM-MX-AM Tuner S-2100
Sherwood, Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sherwood, Chicago
- Year
- 1963–1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 344427
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-MX-AM Tuner S-2100 - Sherwood, Chicago
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 356 x 108 x 267 mm / 14 x 4.3 x 10.5 inch
- Notes
-
Stereo tuner, with AFC and "Interchannel Hush" (= mute).
