Stereo AM/FM Tuner TD-7010R

Sherwood, Chicago

  • Year
  • 1990 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 271067

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo AM/FM Tuner TD-7010R - Sherwood, Chicago
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 17.32 x 2.76 x 8.86 inch / 440 x 70 x 225 mm
  • Notes
  • Sherwood Quartz PLL Synthesizer Tuner Model TD-7010R.
    Quartz Synthesiized Tuning System
    Digital Display, Auto Tuning
    30 Station Presets
    10 Segment Signal Strength Meter
    Hi-Blend Switch
    Aluminum Front Panel
    Frequency Range:
    FM 87,5 - 108 MHz, 10 - 15000Hz
    AM 520 - 1710 kHz
    AM Loop antenna
    DIGI LINK - Integrated Remote Control System - (This Feature requires remote controlled Sherwood amplifier).



  • Net weight (2.2 lb = 1 kg)
  • 7.7 lb (7 lb 11.2 oz) / 3.496 kg
  • Mentioned in

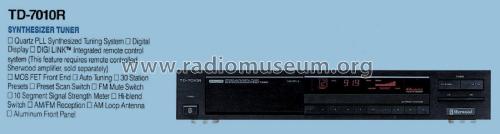

  • -- Original prospect or advert (Katalog Home Audio Components 1990)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
