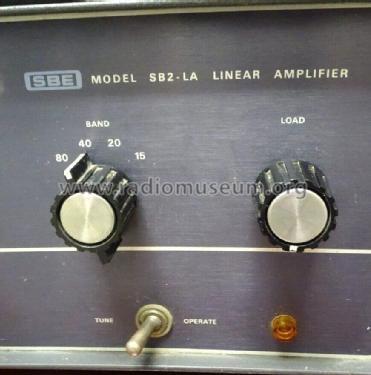

Linear Amplifier SB-2LA

Linear Amplifier SB-2LA; Sideband Engineers (ID = 599917) RF-Ampl.
Use red slider bar for more.
Linear Amplifier SB-2LA; Sideband Engineers (ID = 599917) RF-Ampl.
Sideband Engineers: Linear Amplifier SB-2LA [RF-Ampl.] ID = 599917 933x654
Select picture or schematic to display from thumbnails on the right and click for download.
For model Linear Amplifier SB-2LA, Sideband Engineers Inc.; Rancho Santa Fe (CA):
Quelle: Manual

Country:  United States of America (USA)
Manufacturer / Brand:  Sideband Engineers Inc.; Rancho Santa Fe (CA)
alternative name

SBE
Year: 1966 ?? Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 6: 6JE6 6JE6 6JE6 6JE6 6JE6 6JE6
Main principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Linear Amplifier SB-2LA - Sideband Engineers Inc.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12 x 5.75 x 12.5 inch / 305 x 146 x 318 mm
Notes Designed primarily for use with the SB-34 SSB-Transceiver.
Peak power input up to 1000W.
Net weight (2.2 lb = 1 kg) 18.1 kg / 39 lb 13.9 oz (39.868 lb)
Source of data -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.
