Ohm-Meter

Ohm-Meter ; Siemens-Austria WSW; (ID = 2529035) Equipment Ohm-Meter ; Siemens-Austria WSW; (ID = 2529036) Equipment
Ohm-Meter ; Siemens-Austria WSW; (ID = 2529038) Equipment Ohm-Meter ; Siemens-Austria WSW; (ID = 2529039) Equipment
Ohm-Meter ; Siemens-Austria WSW; (ID = 2529041) Equipment Ohm-Meter ; Siemens-Austria WSW; (ID = 2529043) Equipment
Ohm-Meter ; Siemens-Austria WSW; (ID = 2529044) Equipment Ohm-Meter ; Siemens-Austria WSW; (ID = 2529045) Equipment
Ohm-Meter ; Siemens-Austria WSW; (ID = 2529046) Equipment Ohm-Meter ; Siemens-Austria WSW; (ID = 2529047) Equipment
Use red slider bar for more.
Ohm-Meter ; Siemens-Austria WSW; (ID = 2529035) Equipment
Siemens-Austria WSW;: Ohm-Meter [Equipment] ID = 2529035 1321x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ohm-Meter, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1928 ?? Category: Service- or Lab Equipment
Wave bands - without
Details

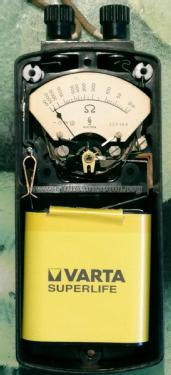

Power type and voltage Dry Batteries / 4,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Ohm-Meter - Siemens-Austria WSW; Wien
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 182 x 32 mm / 3 x 7.2 x 1.3 inch
Notes

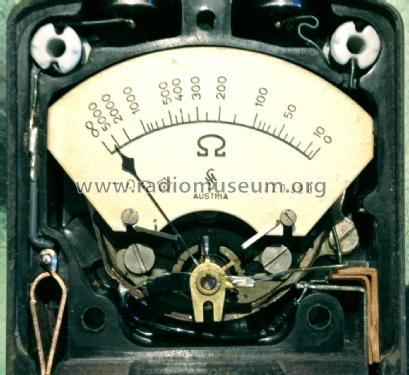

Messbereich 0 - 5000 Ω.

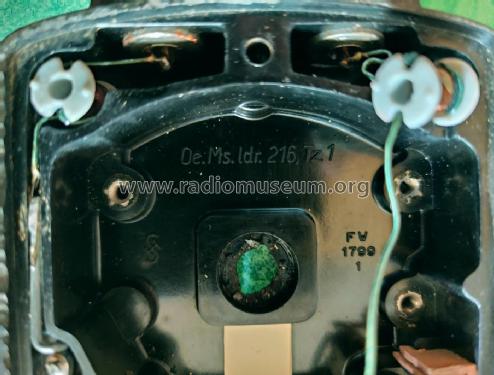

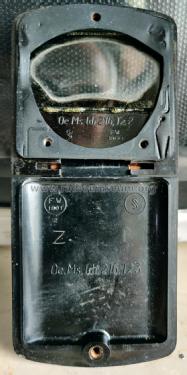

Im Deckel ist die Bezeichnung "Oe. Ms. ldr. 216 Tz. 3" eingeprägt.

Net weight (2.2 lb = 1 kg) 0.310 kg / 0 lb 10.9 oz (0.683 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
