SA7336T /00

SA7336T /00; Siera; Eindhoven NL (ID = 2260102) Radio SA7336T /00; Siera; Eindhoven NL (ID = 2260104) Radio

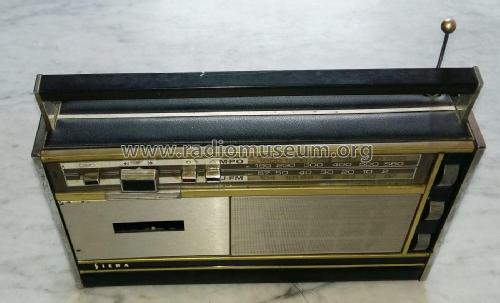

SA7336T /00; Siera; Eindhoven NL (ID = 2260103) Radio SA7336T /00; Siera; Eindhoven NL (ID = 2260105) Radio
SA7336T /00; Siera; Eindhoven NL (ID = 2260106) Radio SA7336T /00; Siera; Eindhoven NL (ID = 2260107) Radio
SA7336T /00; Siera; Eindhoven NL (ID = 2260108) Radio
Use red slider bar for more.
SA7336T /00; Siera; Eindhoven NL (ID = 2260102) Radio

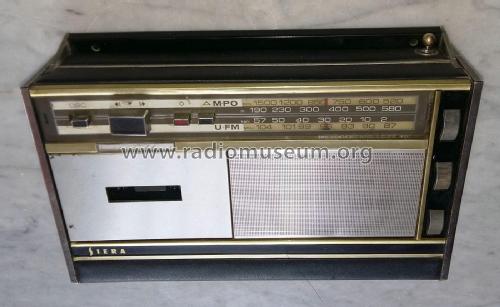

Siera; Eindhoven NL: SA7336T /00 [Radio] ID = 2260102 1400x862
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA7336T /00, Siera; Eindhoven (NL)

Country:  Netherlands
Manufacturer / Brand:  Siera; Eindhoven (NL)
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 5 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: SA7336T /00 - Siera; Eindhoven NL
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 190 x 90 mm / 12.2 x 7.5 x 3.5 inch
Notes

FM range: 87 - 104 MHz.

See also Philips Holiday 22RR482 and similar model Horny King SA7336.



Net weight (2.2 lb = 1 kg) 2.450 kg / 5 lb 6.3 oz (5.396 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
